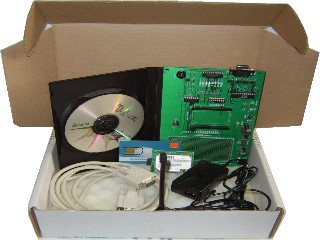

The GSM2M-DK-10 is a starter kit for evaluation of the GSM2M-1A embedded modem.It provides a quick start solution to testing, and provide a platform for product development. The starter kit comes with a GSM2M-1A modem, development board, switch mode PSU , serial cable, Mini magnetic mount GSM antenna, Orange network PAYG SIM and documentation on CD. A prototype area is included on the development board for the solder mounting of a microcontroller and components. A Protobloc option is available for none permanent designs.
Interfaces
Serial RS232 Interface with D-SUB 9 way connector (female), speeds up to 115.2 kbps.
2.5mm Power jack connector for external power adapters.(7 - 12 VDC @ 1A)
20 way interface on PCB for external device, ie microcontroller.
Status Leds
Serial Interface status Leds with TX, RX, RTS, RI, DSR, CTS, DCD, DTR.
GSM status Leds for network status and transmitting.
Power Indicator for 5V DC.
Specifications
Size: 200mm × 125mm
Serial ITU-T V.28 (EIA/TIA-232-E interface
Speaker output for ring melody indication.
Starter kit contains cables, power supply and GSM MagMount antenna.
Full prototyping area included, ordering option with protobloc board.
